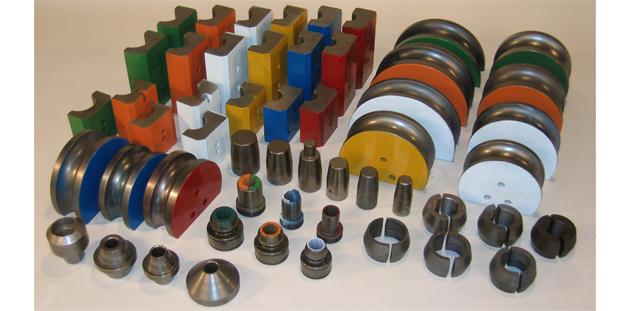

Super 120 Die Package

RADIUS DIE
Part No.        Radius        Size
60221           3"             1 1⁄2"
60225           3"             1 3⁄4"
60226           4"             1 3⁄4"
60231           4"             1 7/8"
60235           3"             2"
60236           4"             2"
60237           5"             2"
60241           4"             2 1⁄4"
60242           5"             2 1⁄4"
60245           4"             2 1⁄2"
60246           5"             2 1⁄2"

BACK SHOES (2 REQUIRED)
Part No.        Pcs.            Size
61000          2               1 1⁄2"
61001          2               1 3⁄4"
61002          2               1 7/8"
61003          2               2"
61004          2               2 1⁄4"
61005          2               2 1⁄2"

THREE QUARTER SHOES
Part No.                         Size
61011                           2"
61012                           2 1⁄4"

HALF SHOES
Part No.                         Size
61014                           1 1⁄2"
61015                           1 3⁄4"
61016                           1 7/8"
61017                           2"
61018                           2 1⁄4"
61019                           2 1⁄2"

EXPANDER SEGMENTS
Part No.                         Size
61967                          1 1⁄2" - 1 5⁄8"
61548                          1 3⁄4" - 2"
61549                          2 1⁄8" - 2 1⁄2"

BUICK BALLS (SEGMENTED)
Part No.                         Size
61544                            2"
61545                            2 1⁄4"
61546                            2 1⁄2"

COLLETS (2 REQUIRED)
Part No.                         Size
61430                           1 1⁄2"
61428                           1 3⁄4"
61427                           1 7/8"
61426                           2"
61424                           2 1⁄4"
61423                           2 1⁄2"

SWAGERS ASSEMBLY
Part No.                        Size
61241                           1 1⁄2"
61237                           1 3⁄4"
61235                           1 7/8"
61233                           2"
61231                           2 1⁄4"
61229                           2 1⁄2"

FEMALE BALL JOINTS
Part No.                       Size
60780                          1 3⁄4" and 2"
60779                          2 1⁄4" and 2 1⁄2"

SOLID DIE FLARE
Part No.                       Size
61049                         45°/90° Flare
                                  1 1/2" - 3 1/2"

SUPER FLANGE ASSEMBLY
Part No.                        Size
61258                          1 1⁄2" - 2"

61841 O-Ring Kit
