Model TP10-ADJ

Ben Pearson TP10-ADJ, 10,000 lbs. two post symmetric-asymmetric clear floor style lift features a adjustable overall height to fit in more service bays
Model 10-ADJ
Bookmark and Share
Ben Pearson
Call For Price

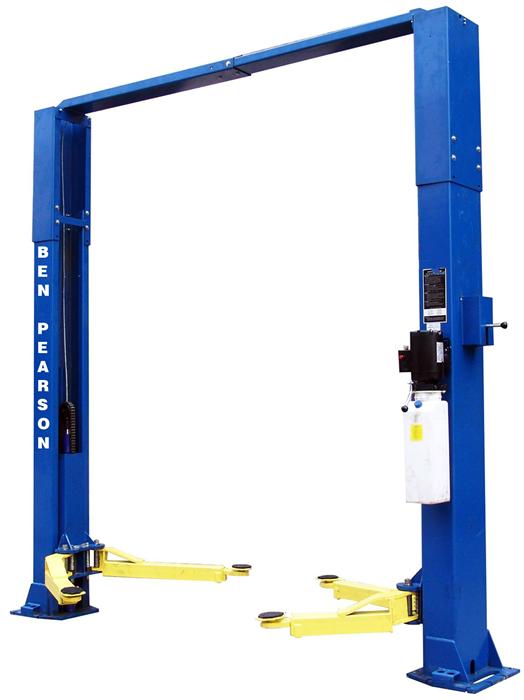

The TP10-ADJ  Adjustable Height Two Post Lift from Ben Pearson.

Ben Pearson's TP10AD Adjustable Height Two post Lift.
Every Shop is a little different, that's why Ben Pearson created the TP10-ADJ two-post lift. This rugged lift gives you the flexibility to adjust the height to fit in bays that require less than 12'. The TP10-ADJ can lift in a symmetrical or asymmetrical mode, allowing you to work on just about any vehicle that comes in for service work.
With 10,000 pounds of lifting capacity, two lifting modes and a heavy-duty chain over lifting system, Ben Pearson's TP10-ADJ will deliver the power and reliability you've come to expect from a Ben Pearson lift. Want more Information? That's easy, just give us a call (1-800-436-1327) and let us explain feature by feature, what the best, most flexible and affordable lift you can buy.

Lift Features:

  • Dual cylinder with low friction chain roller
  • Automatic arm restraints
  • Padded cut-off bar. Automatic electric override
  • Single point lock release
  • Stackable truck adapters are standard ( 3” and 6 1/2”)
  • Powder coat paint finish

Lift Specifications:

Capacity 10,000 lbs
Lifting Speed 50 seconds
Motor Rating 2HP - 220V
Width Overall 137 1/2"
Height Overall 141 1/2" - 145 1/2"
Drive Thru Width 98 1/2"
Raised Height(no ext.) 70 1/4"
Raised Height(with ext.) 75 3/4"
Low Height 4 1/2"
