Model TP10
Ben Pearson's TP10 Can Expand Your Service Bay Without Expanding Your Cost.
Ben Pearson
Call For Price
(Required)(Numeric value required)

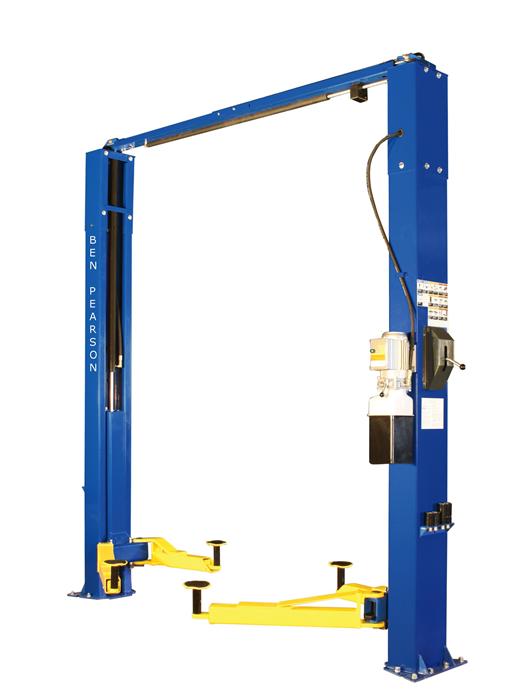

When You Invest In Ben Pearson's TP10 Two Post Lift, Its Like Getting Two Lifts For The Price Of One.
Every Shop is a little different and so is every vehicle you service. Thats why we created the TP10 two-post lift. This rugged lift gives you the flexibility to expand your service bay. The TP10 can lift in a symmetrical mode or asymmetrical mode allowing you to work on just about any vehicle that comes in for service work.With 10,000 pounds of lifting capacity and Triple Telescoping Arms that can reach the most difficult lifting points will make this the hardest working lift in your garage.
Features:
- Dual Cylinder Direct Pull lifting. No Chains Or Roller Bearings To Wear Out.
- Spring Operated Arm Restraints
- Extra Long Carriage (44"). Puts Less Stress On Slider Blocks
- Padded Cut-Off Bar. Automatic Electric Override.
- Single Point Lock Release.
- UNIQUE TRIPLE TELESCOPING ARMS
- Stackable Truck Adapters Standard.
- Powder Coat Paint Finish.
- Truck Adapters Included.
Specifications:
| Capacity |
10,000 lbs |
| Lifting Speed |
50 seconds |
| Motor |
2HP 220V 20A |
| Lifting Height |
3 5/8" - 77" |
| Width Overall |
137" |
| Height Overall |
143 1/8" |
| Long Arm Ext. |
38 7/8" - 58" |
| Short Arm Ext. |
23 " - 44 1/2" |
