MADE IN THE USA---- The HC12000-4-AIR Four-Post From Ben Pearson. when your job requires the hardest working surface mounted lift available, Ben Pearson's HC12000-4-AIR four-post is up to the challenge.
Bookmark and Share
Ben Pearson
Call For Price

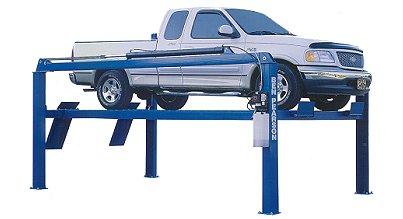

Ben Pearson's HC12000-4-AIR Four-Post Lift
American Made Quality In Every Lift

Every Ben Pearson lift is designed and built to exacting specifications. And most importantly, each HC12000-4-AIR Four-Post is American made, that's your assurance that you're investing in a surface mounted lift that's built to withstand the rugged performance you need to get the job done.

We build our lifts with the features you need.
Every lift we build comes loaded with the features you need. Operator convenience features. Safety features. Design features that make your job easier and more productive.

Lift Features:

  • Easy installation no excavation required
  • Run-ways feature diamond-plate non skid surface
  • Reversible top rail for either driver-side or passenger-side installation
  • Single Point Air operated lock release
  • Multi-position locks in all four columns
  • Drive-through capability is available with the addition of drive-through ramps
  • Adjustable run-ways accommodate a variety of tire widths
  • All models feature an integrated hydraulic back-up safety system for added safety
  • All models come standard with rail kits to accommodate rolling drain pans or bridges/jacks
  • Four-post design provides complete access to under-side of vehicle
  • Lifting system features high tensile strength leaf chain instead of cables
  • Electric/hydraulic power units incorporates a full regulated pressure relief system
  • A single hydraulic cylinder provides dependable service and minimum maintenance

Lift Specification:

HC12000-4 AIR HC12000-4 AIR EXHAUST
Lifting Capacity 12,000 lb 12,000 lb
Overall Height 97-1/2" 97-1/2"
Overall Width (At floor) 135-3/4" 135-3/4"
Overall Length of Frame 205-9/16" 205-9/16"
Overall Length of Lift 241-1/4" 241-1/4"
Runway Width 20" 14"---(NARROW)
Runway Height 6" 6"
Runway Length 203-1/2" 203-1/2"
Runway Section 5" Double "C" Channel 5" Double "C" Channel
Crossmember Section 4" Rectangular Tubing 4" Rectangular Tubing
Max. General Wheelbase 185" 185"
Lifting Height (On top locking-bar) 73" 73"
Drive-Through Clearance 120-3/8" 120-3/8"
Motor 2 HP 2 HP
Voltage (1PH) (2PH available) 208/230 208/230
Lifting and suspension medium Leaf Chain Leaf Chain
