Model Baymaster 9FP

Built For Performance... Our unique floor plate design gives shops with minimal overhead space, even with ceilings as low as 10', plenty of room to add this hard working lift to your shop.
Bookmark and Share
Ben Pearson Baymaster Series
MSRP: $2,995.00
Regular: $2,395.00
On Sale $2,195.00

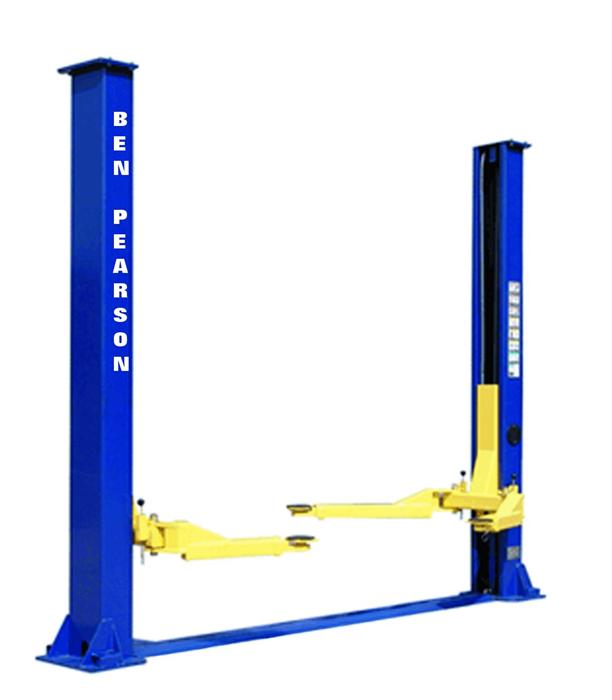

A rugged lift built for Performance. Ben Pearson's Baymaster 9FP .

The 9FP could easily be described as our most versatile lift. Lifting taller vehicles or vans is easy. In fact, many shops use this lift regardless of their ceiling restrictions. Plus, the rugged chain lifting system and the convenient stack pad system, will add the perfect lift for any shop.

Lift Features:

  • 9,000 lifting capacity
  • Symmetric design
  • Dual cylinders with low friction chain rollers
  • Low profile automatic arm restraints
  • Stackable drop-in height adapters
  • Powder-coated paint finish
  • Heavy-duty lifting chain



Lift Specifications:

Capacity 9,000 lbs
Lifting Speed 50 seconds
Motor Rating 2HP - 220V
Width Overall 134"
Height Overall 111-1/2"
Drive Thru Width 92"
Raised Height(no ext.) 70-1/2"
Raised Height(with ext.) 75-1/2"
Low Height 4.5"
Lifting Speed 55 seconds
