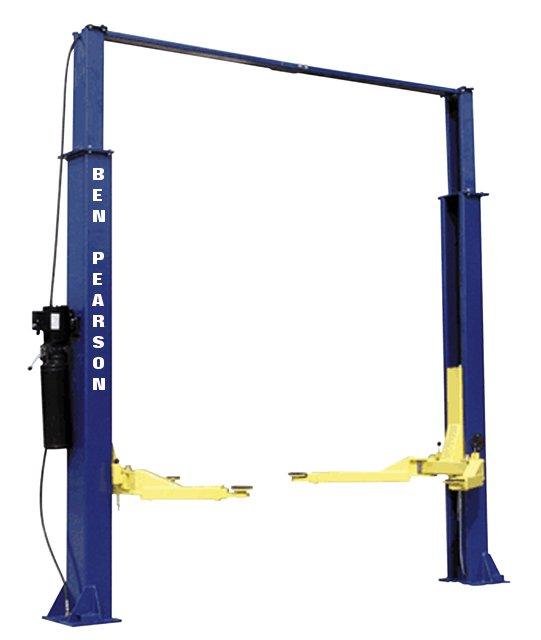

Model Baymaster 9CF

The Baymaster 9CF from Ben Pearson has the Features you need. Its a true asymmetrical design lift, and like all Ben Pearson lifts, it has all the features that provide the rugged durability you've come to expect from Ben Pearson.
Bookmark and Share
Ben Pearson Baymaster Series
Call For Price

We've Put 9,000 Pounds Of Lifting Power And Ben Pearson Quality Into The Baymaster 9CF.

Quality made. Performance tested. When you invest in Ben Pearson Baymaster 9CF you get both. Plus a whole lot more. Features. Rugged durability. Every Baymaster 9CF delivers all this and operator features that go beyond whats needed.

Lift Features:

  • Asymmetric Design
  • Dual Cylinders With Low Friction Chain Rollers
  • Low Profile Automatic Arm Restraints
  • Stackable Drop-In Height Adapters
  • Powder-Coated Paint Finish
  • Electric Override Automatic Safety Shut-Off


Lift Specifications:


Capacity 9000 lbs
Lifting Speed 50 seconds
Motor Rating 2HP - 220V
Width Overall 134"
Height Overall 142"
Drive Thru Width 92"
Width Between Column 109"
Raised Height(no ext.) 70-1/2"
Raised Height(with ext.) 75-1/2"
Low Height 4.5"
Lifting Speed 51 seconds
