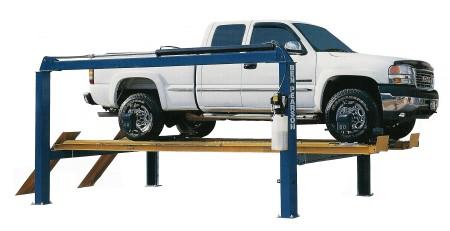

Model ALX Alignment Lift
Ben Pearson's ALX Alignment Lift can deliver the power and durability you need every day to your shop. This lift handles cars, vans, trucks – even light and medium duty commercial vehicles with ease.
Our features make this lift your best investment.
When you invest in a Ben Pearson lift you'll always get the features you need to make your job easier. Operator convenience features. Safety features. Features that aren't added on, their built-in: Two independent slip plates, roller Jack ready, heavy-duty 20 inch tracks, multiple leveling positions, safety release system, high-strength tracks. Ben Pearson's ALX alignment Lifts and are compatible with new technology alignment systems on the market today.
Features:
- Extra wide tracks enable this unit to lift a wide range of vehicles without lateral adjustment. Lateral adjustment is standard on all models.
- Bearings have grease fittings for easy maintenance
- Exclusive high strength track design limits twisting due to off center loads and gives extra stability to track jacks and jacking beams
- Chains for lifting and equalization give added safety and long life.
- Threaded adjustment for easy leveling
- Mechanical release safety system
- Extra heavy crossmember is for added stability and reduced deflection under load
- Completely self-contained hydraulic power unit with translucent tank for easy monitoring of fluid level
- Pressure relief valve to prevent overloading, and push-button operations for lifting
Specifications:
|
12000-ALX |
12000-ALX-E |
Length Overall |
270 3/8" |
301 1/2" |
Width Overall |
135 3/4" |
135 3/4" |
Inside of Columns |
120 3/8" |
120 3/8" |
Between Columns |
162" |
187" |
Overall Height |
95 5/8" |
95 5/8" |
Width of Runways |
20" |
20" |
Height of Runways |
12 3/4" |
12 3/4" |
Maximum Runway Height |
83 3/4" |
83 3/4" |
Rise |
71" |
71" |
Width Between Runways (minimum) |
37 3/4" |
37 3/4" |
Width Between Runways (maximum) |
57 3/4" |
57 3/4" |
Lifting Capacity |
12,000 lbs. |
12,000 lbs. |
Motor |
2 HP |
2 HP |
Voltage (single phase) |
208-230 VAC |
208-230 VAC |
Min. Four-Wheel Alignment |
82 1/8" |
82 1/8" |
Max. Four-Wheel Alignment |
163 1/8" |
163 1/8" |
Min. Two-Wheel Alignment |
82 1/8" |
82 1/8" |
Max. Two-Wheel Alignment |
186 1/2" |
216" |
Maximum Wheelbase |
192 1/2" |
223" |
Minimum Recommended Bay Size |
15' x 27' |
15' x 29' |
