Model 10AD

10,000 lb. 2 post with straight posts and asymmetrical arms. This Design allows you to position vehicles to lift both in a straight and asymmetrical position. It's like having two lifts for the price of one.
Bookmark and Share
Ben Pearson
Call For Price

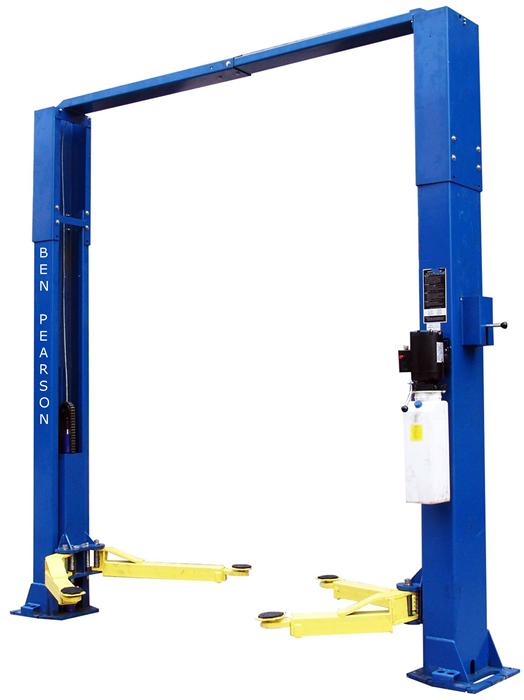

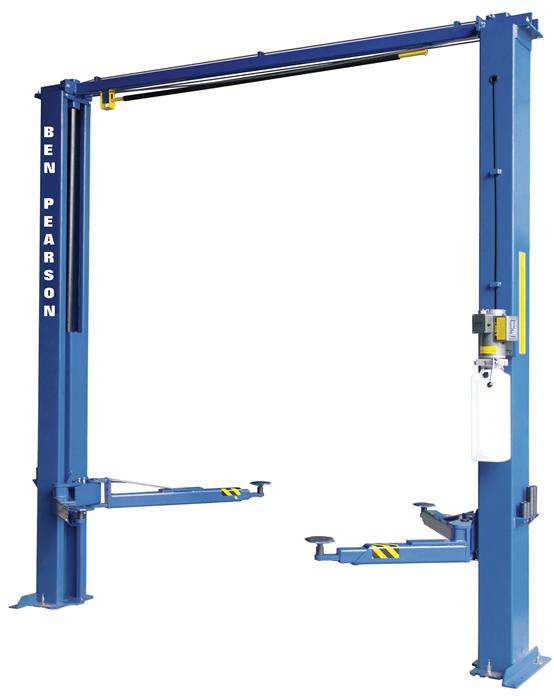

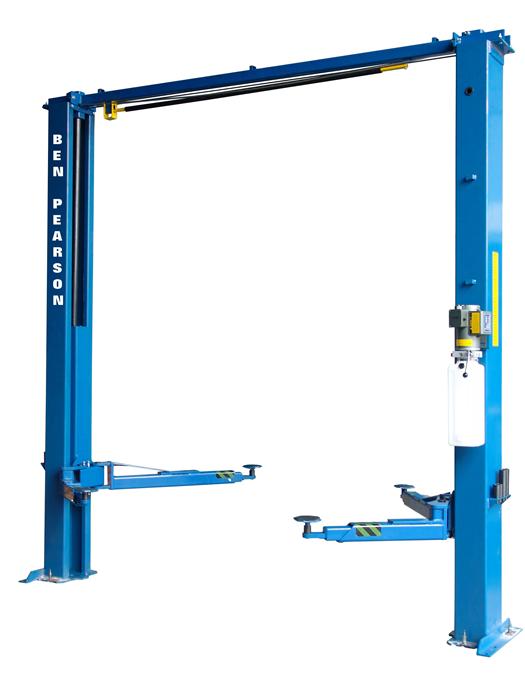

The 10AD from Ben Pearson.

Ben Pearson's 10AD Can Expand Your Service Bay Without Expanding Your Cost...
Every Shop is a little different and so is evry vehicle you service, that's why Ben Pearson created the 10AD two-post lift. This rugged lift gives you the flexibility to expand the services you can offer without expanding your service bay. The 10AD can lift in a symmetrical or asymmetrical mode, allowing you to work on just about any vehicle that comes in for service work. When You Invest In Ben Pearson's 10AD Two Post Lift, It's like Getting 2 Lifts for the Price of One.
With 10,000 pounds of lifting capacity, two lifting modes and a heavy-duty lifting system, Ben Pearson's 10AD will deliver the power and reliability you've come to expect from a Ben Pearson lift. Want more Information? That's easy, just give us a call (1-800-436-1327) and let us explain feature by feature, what the best, most flexible and affordable lift you can buy.

Lift Features:

  • Dual cylinder direct pull lifting. No chains or roller bearings to wear out
  • Single piece column. Continuous rolled steel column. No sheet metal
  • Extra long carriage (44”) puts less stress on slider blocks
  • Padded cut-off bar. Automatic electric override
  • Two point lock release
  • Stackable truck adapters are standard (11⁄2”, 3” and 6”)
  • Powder coat paint finish
  • ALI validated/certified by ETL (10AD)

Lift Specifications:

Capacity 10,000 lbs
Lifting Speed 50 seconds
Motor Rating 2HP - 220V
Width Overall 137-1/2"
Height Overall 142"
Drive Thru Width 96"
Raised Height(no ext.) 70-3/4"
Raised Height(with ext.) 75-3/4"
Low Height 4-1/2"
Lifting Speed

55 seconds
